Zilly heavy-duty narrow stile Panic and Fire-Rated Exit Hardware are designed for using on contemporary glass doors in all public buildings, resort hotels, shopping stores, and all types of aluminum doors or aesthetic requirements.

Applications

• Panic CVR exit devices are used on single or double metal doors. Fire CVR exit devices are used for UL listed fire labeled pairs of doors up to 8' x 8' (2438mm x 2438mm)
• The exit devices are available in the following finishes: US3, US4, US10, US10B, US26, US26D and US32D.
• These CVR models cannot be omitted the bottom rod to use
  as Less Bottom Rod (LBR) devices

Features

• LBR No Bottom strike. Free access for wheel chairs, stretchers and carts.
• For all doors 3' x 8'
• Standard door thickness 1-3 /4"
• Minimum Stile: 3-1 /2" for double door applications
• Mounting: Standard thru-bolts
• Material: Cap and rail are made of brass or Stainless Steel or Steel
• Non Handed
• 161 ANSI cutout
• Latch bolt: Spring; Stainless Steel
• Auxiliary spring latch (fire bolt) is installed in lower edge of door, when exposed fire bolt release keeping the door closed and regulated
• Sold in sets only

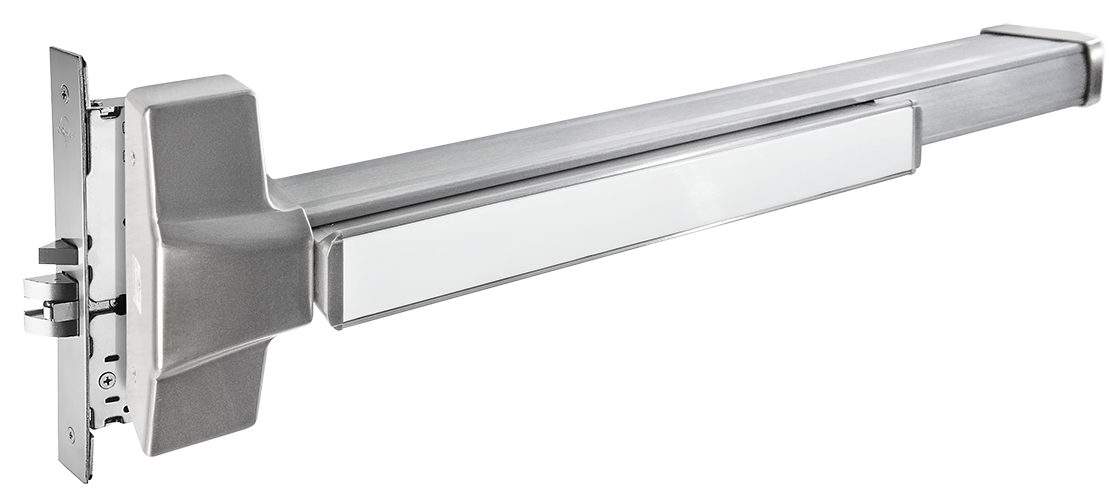

Zilly SZi-ED8600/8800 Series have a full line of heavy-duty wide stile Panic and Fire-Rated Exit Hardware. These series present the perfect choice of durability, safety, elegant & aesthetics combination to meet security demand and access control needs of today

Applications

• SZi-ED8620S / SZi-ED8820S mortise lock exit devices are used for all types of single and double doors.
• SZi-ED8620F / SZi-ED8820F mortise lock exit devices are used for UL listed fire labeled single doors up to 4' x 8' (1219mm x 2438mm) or 8' x 8' (2438mm x 2438mm) double doors installations.
• The Exit device are available in the following finished: US3, US4, US10, US10B, US26, US26D and US32D.

Applications

• Panic SVR exit devices are used for all types of single and double doors. Fire SVR exit devices are used for UL listed fire labeled pairs of doors up to 8' x 8' (2438mm x 2438mm)
• The exit devices are available in the following finishes: US3, US4, US10, US10B, US26, US26D and US32D.
• These SVR models cannot be omitted the bottom rod to use as Less Bottom Rod (LBR) devices.

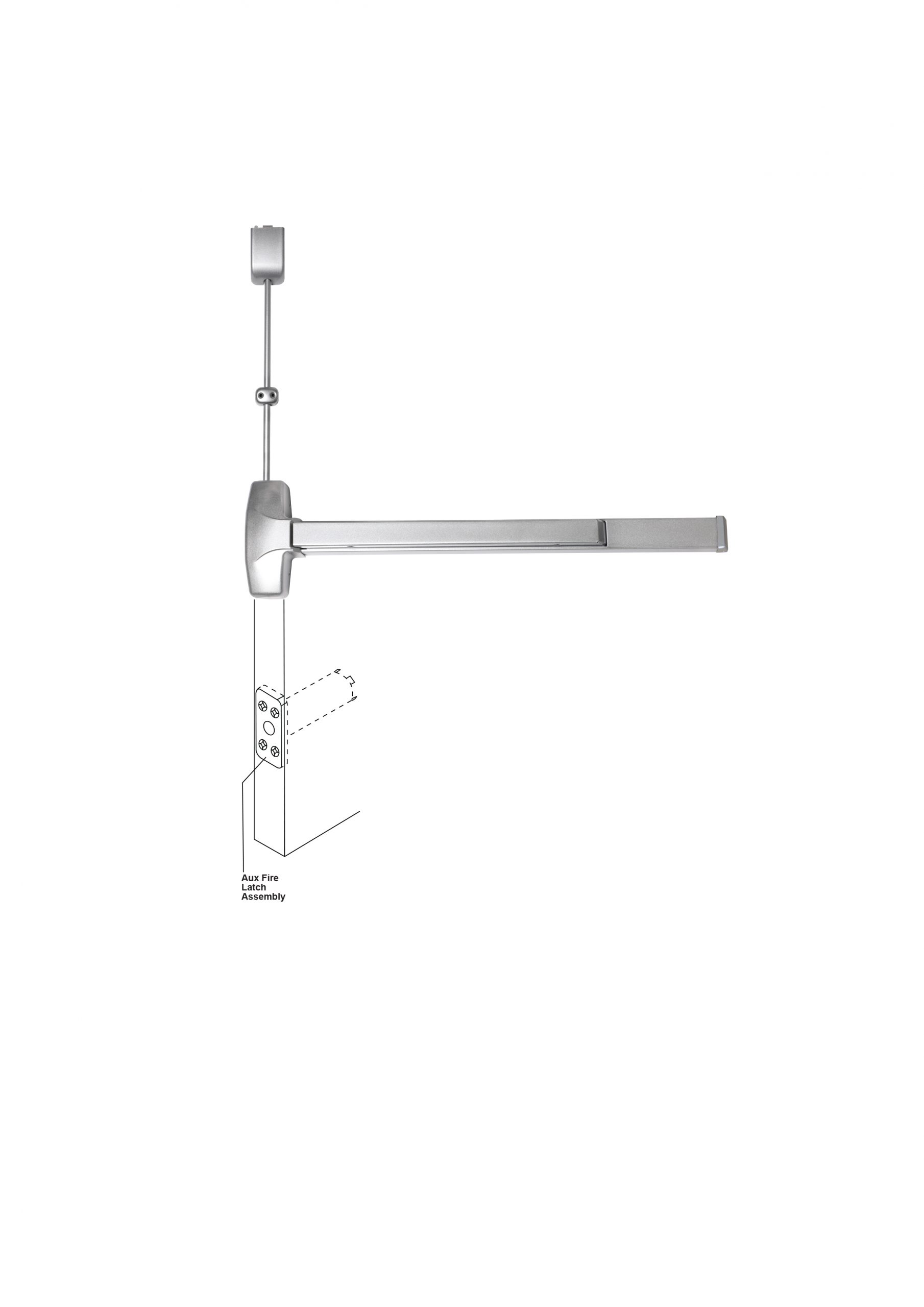

Applications

• Panic LBR exit devices are used for all types of single and double doors. Fire LBR exit devices are used for UL listed fire labeled pairs of steel door up to 8' x 8' (2438mm x 2438mm).
• The exit devices are available in the following finishes: US3, US4, US10, US10B, US26, US26D and US32D.

Applications

• Narrow design Panic SVR exit device are used for the aluminum frame full glass doors or Narrow stile aluminum doors applications. Narrow design Fire SVR exit device are used for the aesthetics requirements of wide stile (2438mm x 2438mm)
• The exit devices are available in the following finishes: US3, US4, US10, US10B, US26, US26D and US32D.

Applications

• Narrow design Panic CVR exit device are used for the aluminum frame full glass doors or narrow stile aluminum doors applications. Narrow design Fire CVR exit devices are used for the aesthetics requirement of wide stile pairs of steel doors up to 8' x 8' (2438mm x 2438mm)
• The exit devices are available in the following finishes: US3, US4, US10, US10B, US26, US26D and US32D.
