    SZi-CPS-202

    Pull Handles

    ZILLY’s diverse range of pull handles offers impressive designs, superior surface finish, and uniform grained surface without any irregularities in the quality. Equipped with the right aesthetics, these handles also have high resistance to indoor and outdoor climatic conditions.

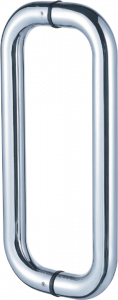

    SZi-CPH002 – D-Shaped Pull Handle

    		 Technical Data & Characteristics

    Type / Shaped D-Shaped Pull Handle
    Base Material Stainless Steel Grade 304
    Standard Length / Height 350mm (Center to Center)
    Standard Thickness 1.2mm
    Handle Tube Details Hollow Tube
    Finish SSS (Satin Stainless Steel Finish)
    Fixing Single side-bolt thru
    Diameter A (mm) H (mm)
    Ø25+Ø38 350-2000 65mm
    Ø25+Ø38 350-2000 75mm

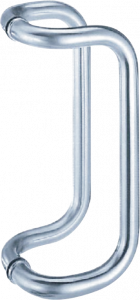

    SZi-CPH003 – Cranked Pull Handle

    		 Technical Data & Characteristics

    Type / Shaped Cranked Pull Handle
    Base Material Stainless Steel Grade 304
    Standard Length / Height 250mm (Center to Center)
    Standard Thickness 1.2mm
    Handle Tube Details Hollow Tube
    Finish SSS (Satin Stainless Steel Finish)
    Fixing Single side-bolt thru
    Diameter A (mm) H (mm) B (mm)
    Ø25 250-2200 100-140mm 75-95mm
    Ø32 250-2200 75mm 75mm
    Ø38 250-2200 75mm 75mm

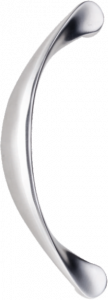

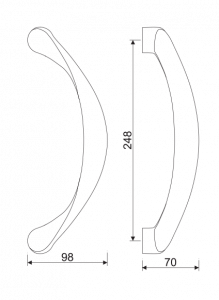

    SZi-CPH007 – Bow-Shaped Pull Handle

    Technical Data & Characteristics

    Type / Shaped Bow-Shaped Pull Handle
    Base Material Stainless Steel Grade 304
    Standard Length / Height 254mm (Center to Center)
    Standard Thickness 1.2mm
    Handle Tube Details Solid
    Finish SSS (Satin Stainless Steel Finish)
    Fixing Single side-bolt thru





    SZi-CPH007 – Bow-Shaped Pull Handle

    Technical Data & Characteristics

    Type / Shaped Bow-Shaped Pull Handle
    Base Material Stainless Steel Grade 304
    Standard Length / Height 248mm (Center to Center)
    Standard Thickness 1.2mm
    Handle Tube Details Solid
    Finish SSS (Satin Stainless Steel Finish)
    Fixing Single side-bolt thru

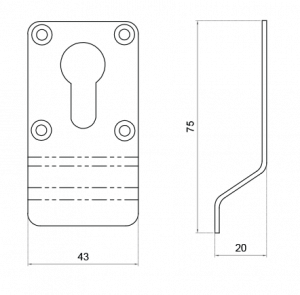

    SZi-CPS-202 – Cylinder Pull

    Technical Data & Characteristics

    Type / Shaped Cylinder Pull
    Application Suitable for ANSI Type Cylinder
    Width 43mm
    Height 75mm
    Depth 20mm
    Finish SSS (Satin Stainless Steel Finish)

    Features
    • Face fixing screws
    • Easy to install
    • Manufactured from Grade 304 steel
    • Face fixing screws
    • Easy to install
    • Manufactured from Grade 304 steel
