2 Ball Bearing Hinges
Certifications
- Certified to ANSI/BHMA A156.1 for performance standards
- Meets ANSI/BHMA 156.7 for template hinge dimensions
- UL Listed, 3-hour fire doors

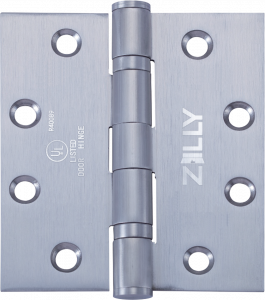

5 Knuckle, 2 Ball Bearing Full Mortise Hinge• Recommended for medium frequency usage
• Made with two ball bearing assemblies
• Recommended for use with a door closer
• Fasteners for steel doors as standard and for wooden doors as option
Certifications
• Certified to ANSI/BHMA A156.1 for performance standards
• Meets ANSI/BHMA 156.7 for template hinge dimensions
• UL Listed, 3-hour fire doors
| Model | Dimensions | Guage | Finish | Grade | ||
| H x W (inches) | H x W (mm) | inches | mm | |||
| SZi-454034 | 4.5” x 4” | 114 x 102 | 0.134” | 3.4 | US32D | 316 |
| 304 | ||||||
| SZi-454534 | 4.5” x 4.5” | 114 x 114 | 0.134” | 3.4 | US32D | 316 |
| 304 | ||||||
| SZi-504534 | 5” x 4.5” | 127 x 114 | 3.4 | US32D | 316 | |
| 0.134” | 304 | |||||
| SZi-403030 | 4” x 3” | 102 x 76 | 0.113″ | 3 | US32D | 316 |
| 304 | ||||||
| SZi-404030 | 4” x 4” | 102 x 102 | 3 | US32D | 316 | |
| 0.113″ | 304 | |||||
| SZi-504034 | 5” x 4” | 127 x 102 | 3.4 | US32D | 316 | |
| 0.134” | 304 | |||||

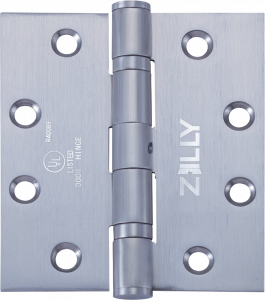

5 Knuckle, 2 Ball Bearing, NRP (Non-Removable Pin)
• Recommended for medium frequency usage
• Made with two ball bearing assemblies
• Recommended for use with a door closer
• Fasteners for steel doors as standard and for wooden doors as option
Certifications
• Certified to ANSI/BHMA A156.1 for performance standards
• Meets ANSI/BHMA 156.7 for template hinge dimensions
• UL Listed, 3-hour fire doors
| Model | Dimensions | Guage | Finish | Grade | ||
| H x W (inches) | H x W (mm) | inches | mm | |||
| SZi-454034-NRP | 4.5” x 4” | 114 x 102 | 0.134” | 3.4 | US32D | 316 |
| 304 | ||||||
| SZi-454534-NRP | 4.5” x 4.5” | 114 x 114 | 0.134” | 3.4 | US32D | 316 |
| 304 | ||||||
| SZi-504534-NRP | 5” x 4.5” | 127 x 114 | 3.4 | US32D | 316 | |
| 0.134” | 304 | |||||
| SZi-504534-NRP | 4” x 3” | 102 x 76 | 0.113″ | 3 | US32D | 316 |
| 304 | ||||||
| SZi-403030-NRP* | 4” x 4” | 102 x 102 | 3 | US32D | 316 | |
| 0.113″ | 304 | |||||
| SZi-404030-NRP* | 5” x 4” | 127 x 102 | 3.4 | US32D | 316 | |
| 0.134” | 304 | |||||
